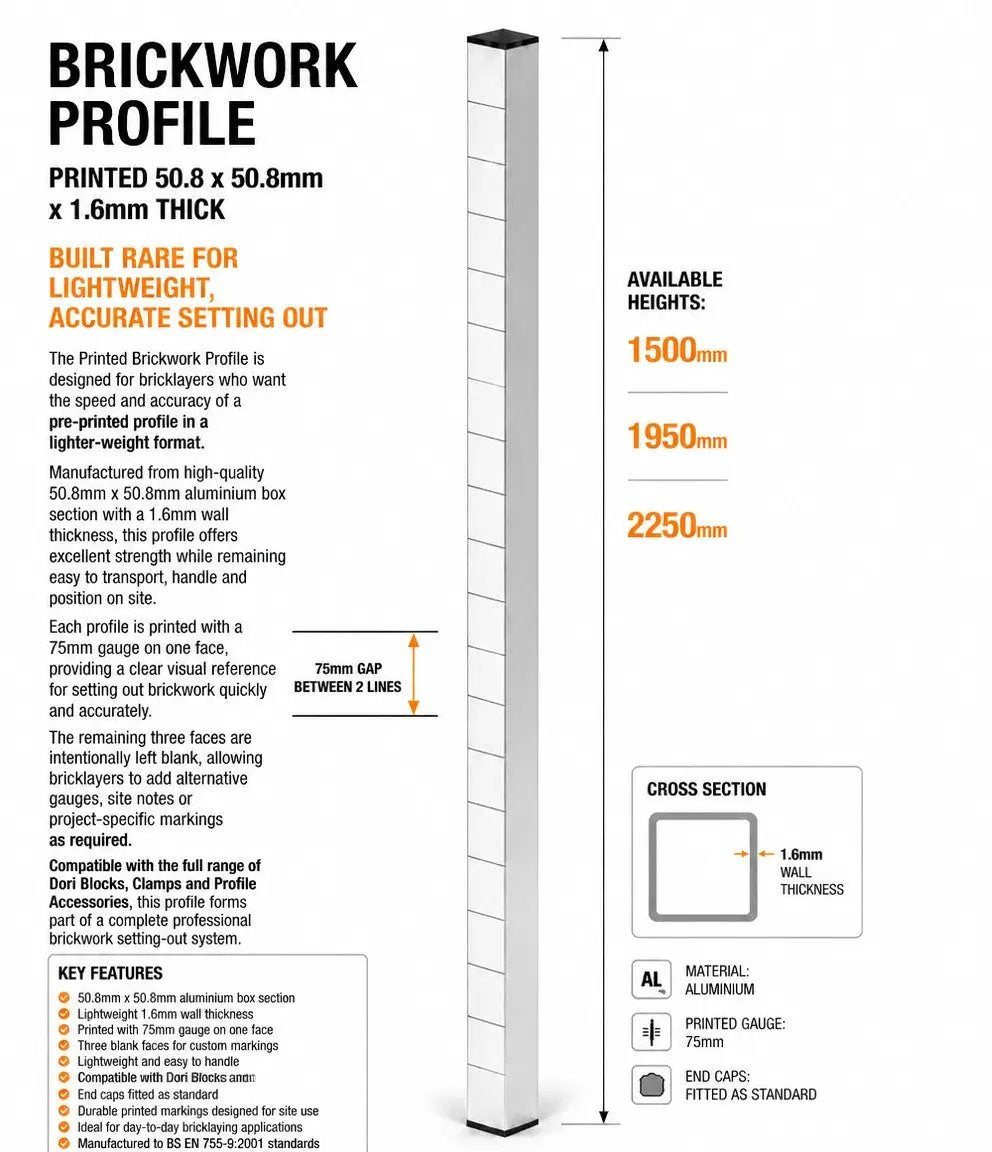

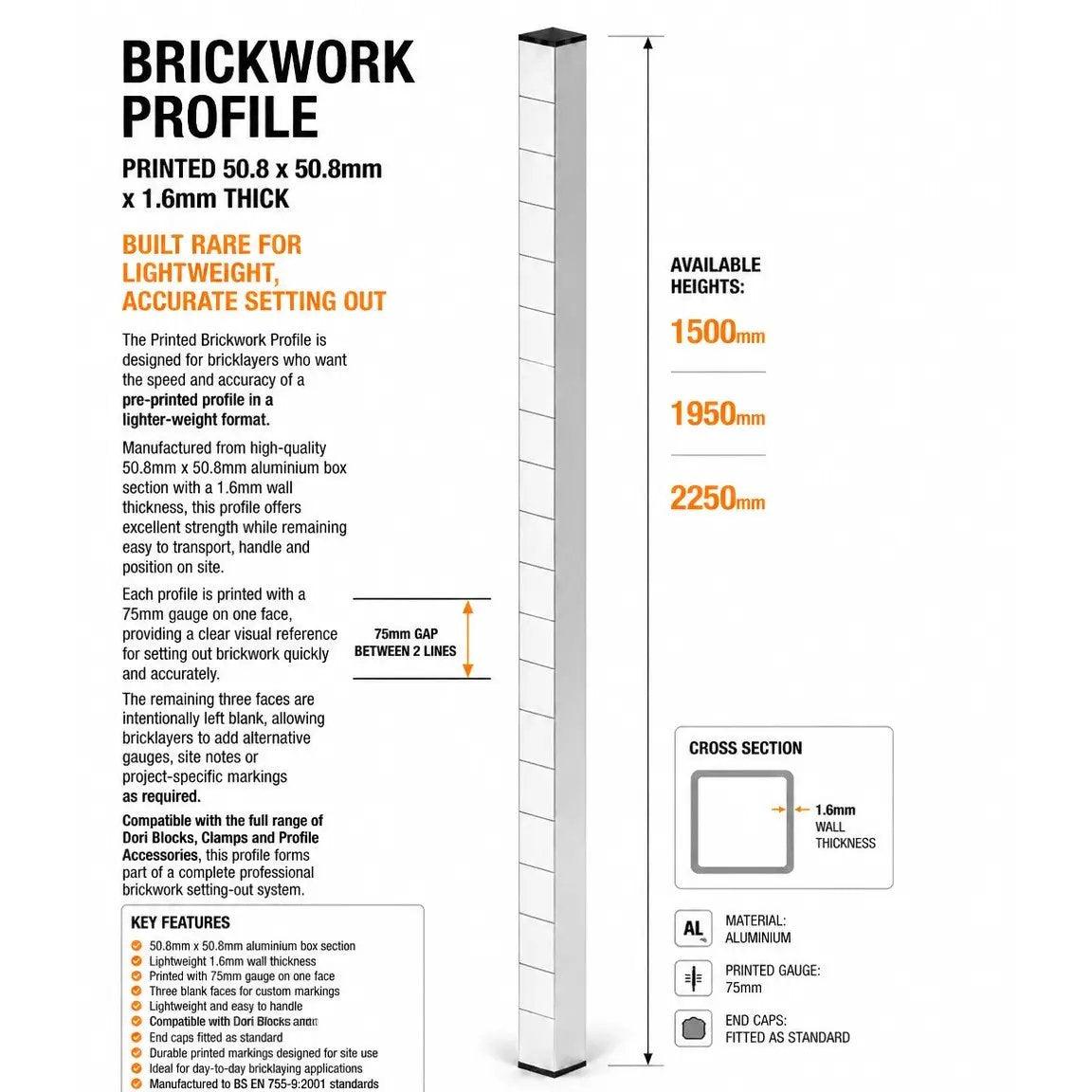

Rhinobuild Brickwork Profile Printed 50.8 x 50.8mm x 1.6mm thick

BUILT RARE FOR LIGHTWEIGHT, ACCURATE SETTING OUT

The Rhinobuild Printed Brickwork Profile is designed for bricklayers who want the speed and accuracy of a pre-printed profile in a lighter-weight format.

Manufactured from high-quality 50.8mm × 50.8mm aluminium box section with a 1.6mm wall thickness, this profile offers excellent strength while remaining easy to transport, handle and position on site. Each profile is printed with a 75mm gauge on one face, providing a clear visual reference for setting out brickwork quickly and accurately.

The remaining three faces are intentionally left blank, allowing bricklayers to add alternative gauges, site notes or project-specific markings as required.

Compatible with the full Rhinobuild range of Dori Blocks, Clamps and Profile Accessories, this profile forms part of a complete professional brickwork setting-out system.

Key Features

• 50.8mm × 50.8mm aluminium box section
• Lightweight 1.6mm wall thickness
• Printed with 75mm gauge on one face
• Three blank faces for custom markings
• Lightweight and easy to handle
• Compatible with Rhinobuild Dori Blocks and Profile Clamps
• End caps fitted as standard
• Durable printed markings designed for site use
• Ideal for day-to-day bricklaying applications
• Manufactured to BS EN 755-9:2001 standards

Why Choose the 1.6mm Printed Profile?

The 1.6mm profile offers many of the benefits of the heavier-duty 3.2mm version while providing a lighter, easier-to-handle solution for everyday bricklaying projects.

The pre-printed 75mm gauge removes the need for manual marking, helping improve setup times and maintain consistent course heights throughout the build. The lighter weight also makes transportation, storage and installation easier, particularly when working on smaller projects or moving profiles frequently around site.

Important Information

• Gauge markings are printed at 75mm centres.
• Measurements are taken between printed lines.
• Gauge positions are not referenced from the ends of the profile.
• Removal of end caps may alter the relationship between the end of the profile and the printed gauge.
• Printed using durable, site-tested ink designed to withstand daily use.
• Surface scratches may affect printed markings but will not affect the performance of the profile.

Specifications

• Profile Size: 50.8mm × 50.8mm
• Wall Thickness: 1.6mm
• Material: Aluminium
• Gauge: 75mm Printed Gauge
• End Caps: Fitted as Standard
• Compliance: BS EN 755-9:2001
• Brand: Rhinobuild

Available Lengths & Weights

Weights may vary slightly due to manufacturing tolerances.

Ideal For

• House Building
• Extension Projects
• Garden Walls
• General Bricklaying
• Maintenance Work
• Masonry Contractors
• Professional Bricklayers

Compatible Accessories

• Rhinobuild Standard Dori Blocks
• Rhinobuild Long Sided Dori Blocks
• Rhinobuild Movement Joint Dori Blocks
• Rhinobuild Profile Clamps
• Rhinobuild Line Systems

What’s Included?

• 1 × Rhinobuild Printed Brickwork Profile
• End Caps Fitted
• Ready-to-Use 75mm Printed Gauge

BUILT RARE.

Built for the rare breed who value speed, accuracy and reliability on site. The Rhinobuild Printed Brickwork Profile helps streamline setting out while maintaining the professional standards demanded by modern bricklayers.
